Optical Transceivers
Delivering diverse, innovative optical transceiver solutions tailored to the needs of ai datacenter and telecommunications customers. Actively advancingoptical modules that incorporate the latest opto‑electronic conversion technologies to meet the demands of AI‑computing networks. Continuing to expand production of LPO‑based optical modules, while driving accelerated development of RTLR‑based designs.
| Data Rate (bps) | Package | Product Solution | Reach | Temp | Connector | Part Number |
| 400G MM | OSFP | 400G VR4/SR4 | 50m | 15~70℃ | MPO12 | LMS8621-PC+ |

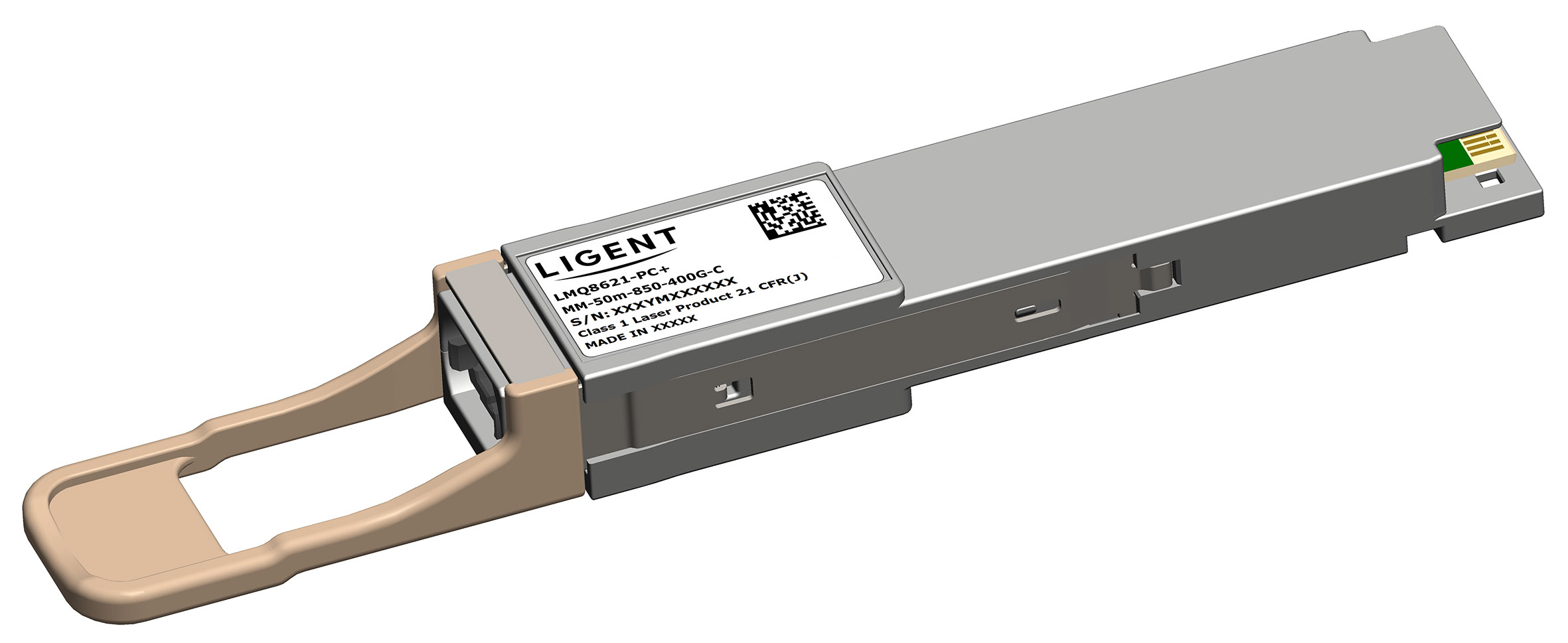

| QSFP112 | 400G VR4/SR4 | 50m | 15~70℃ | MPO12 | LMQ8621-PC+ | |
| QSFP-DD | 400G VR4 | 50m | 0~70℃ | MPO12 | LMQ8921-PC+ | |

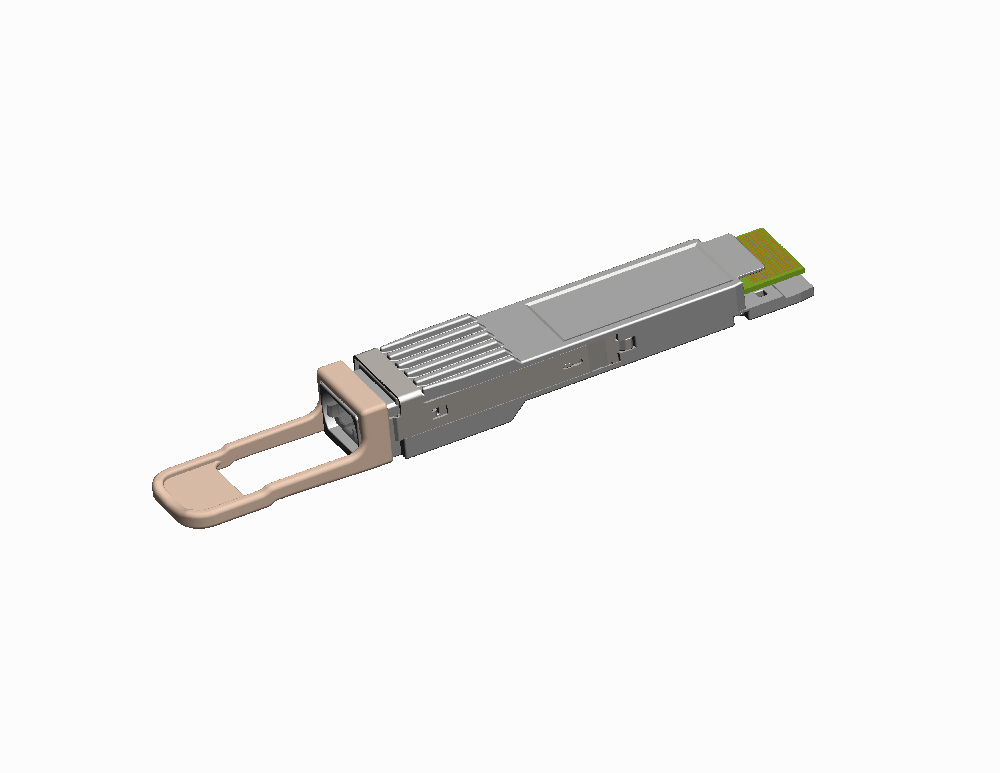

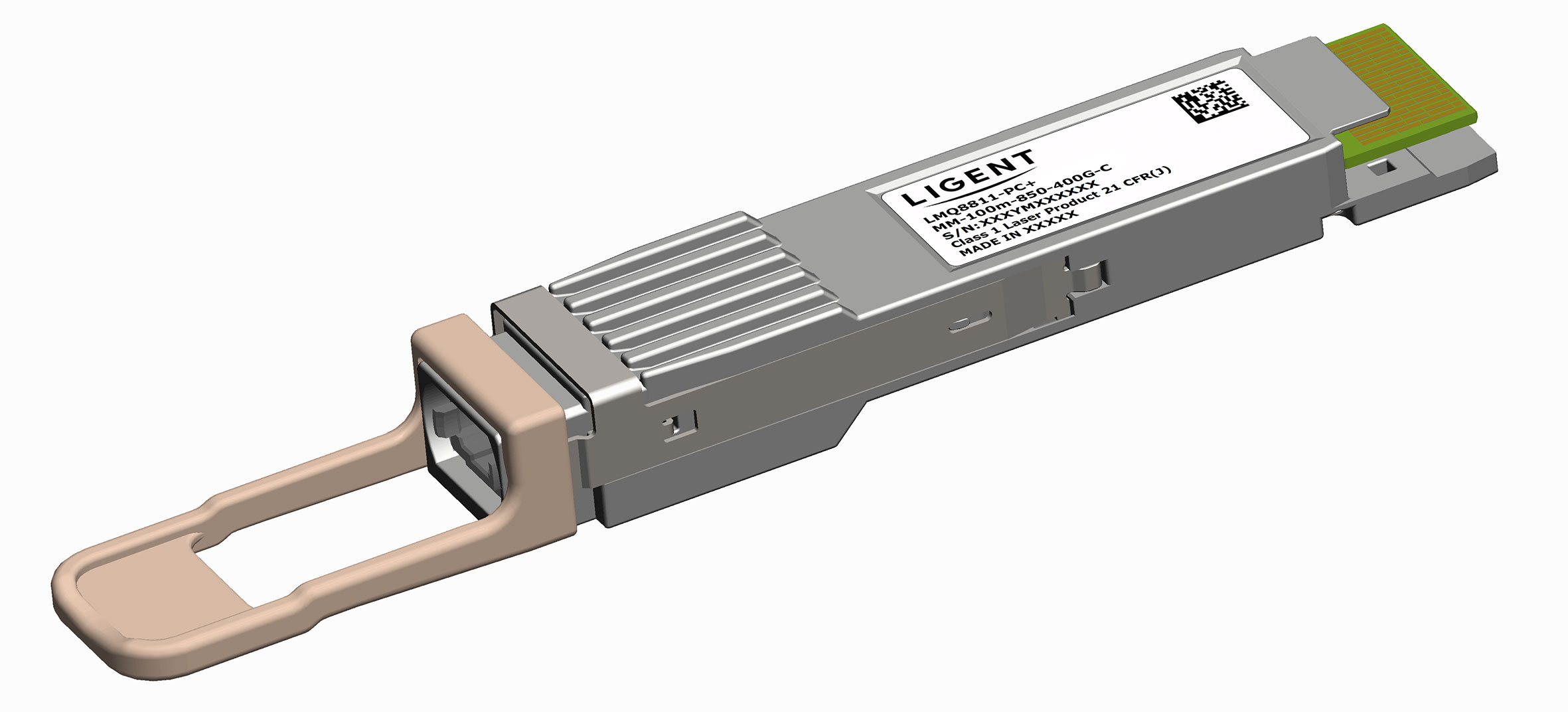

400G SR8 | 100m | 0~70℃ | MPO16 | LMQ8811-PC+ | ||

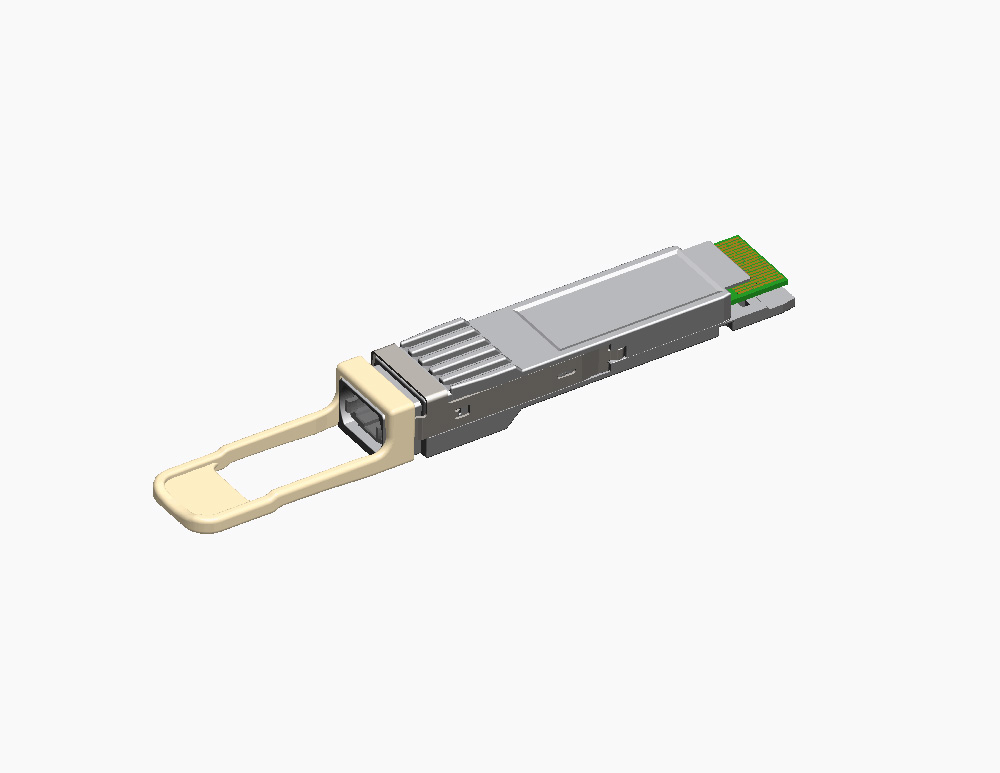

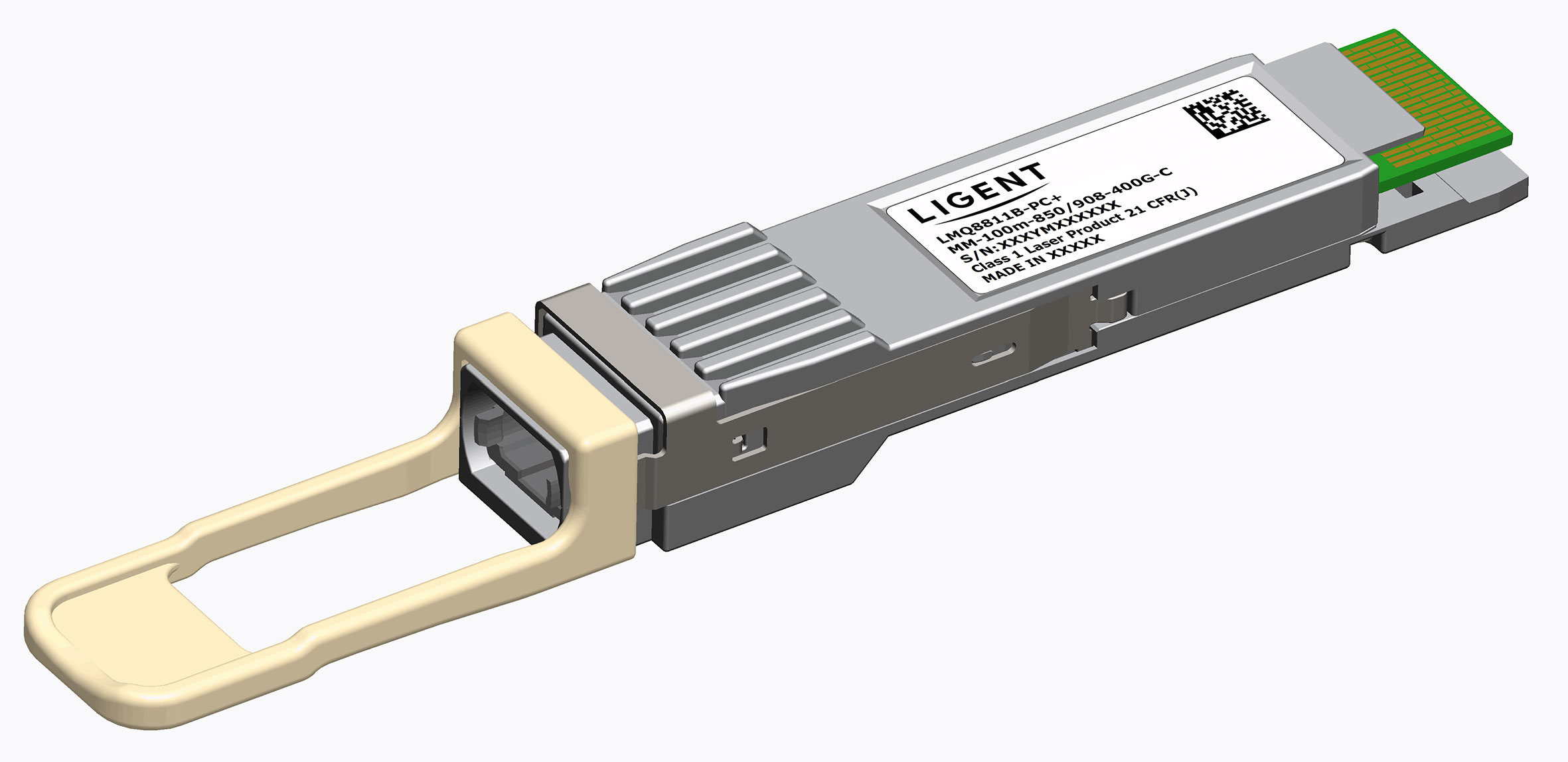

400G SR4.2 | 100m | 0~70℃ | MPO12 | LMQ8811B-PC+ | ||

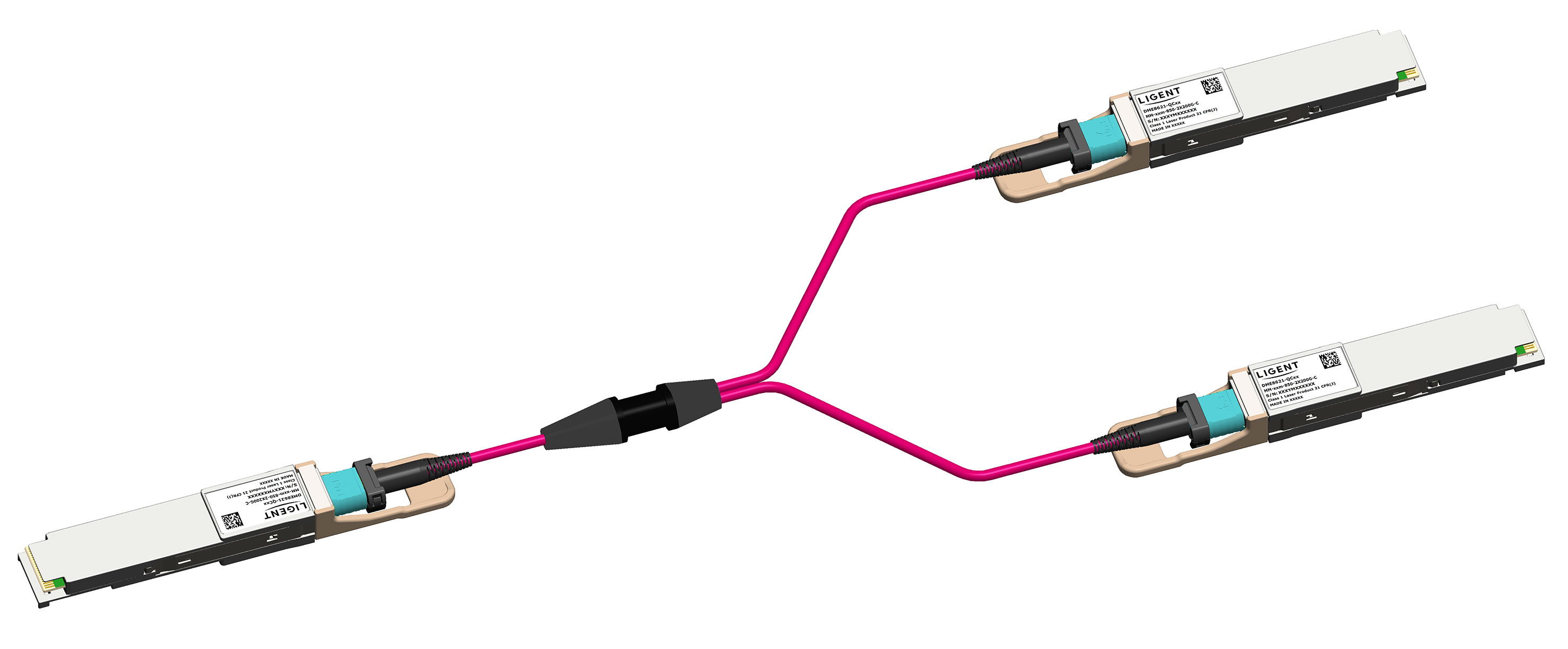

| QSFP112 to 2xQSFP112 | 400G to 2x200G AOC | 1~50m | 15~70℃ | / | DME8621-QCxx | |
| OSFP to QSFP112 | 400G AOC | 1~50m | 15~70℃ | / | DMS8621X-QCxx | |
| OSFP to QSFP-DD | 400G AOC | 1~50m | 15~70℃ | / | DMS8921X-QCxx | |
| 400G SM | QSFP112 | 400G DR4 | 500m | 0~70℃ | MPO12 | LMQ3621S-PC1 |

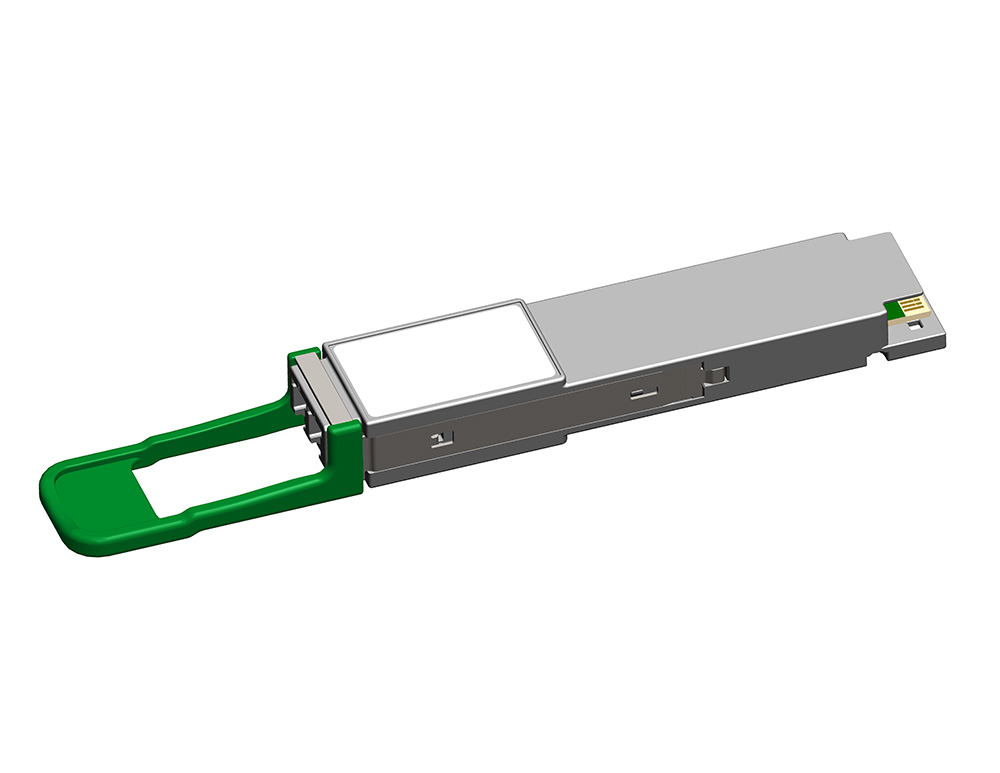

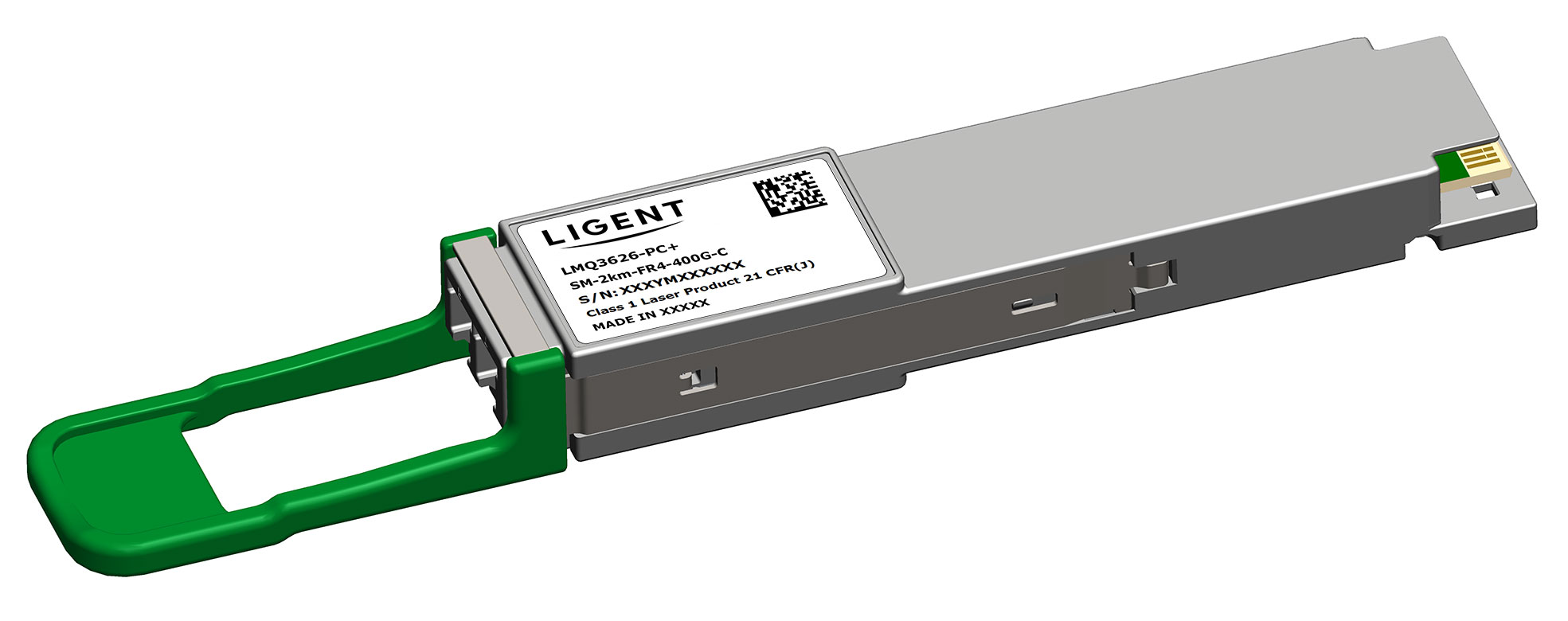

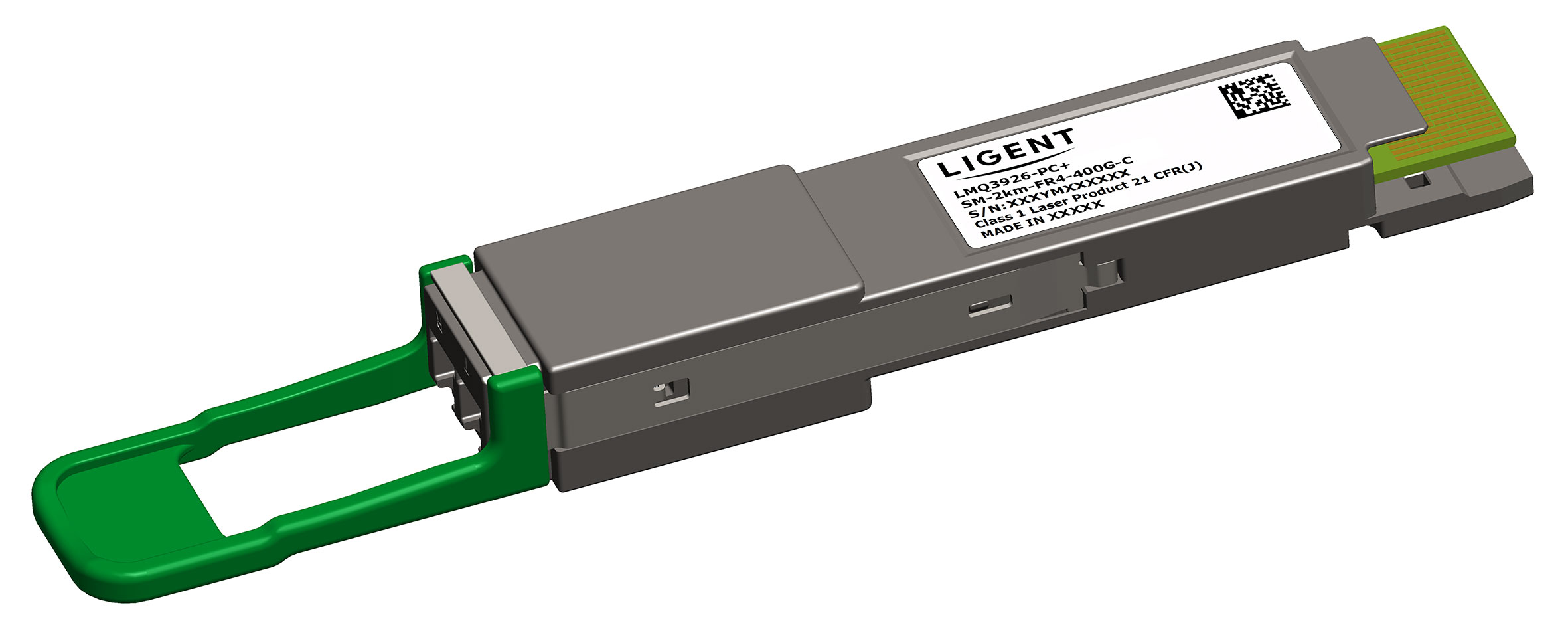

400G FR4 | 2km | 0~70℃ | Dual LC | LMQ3626-PC+ | ||

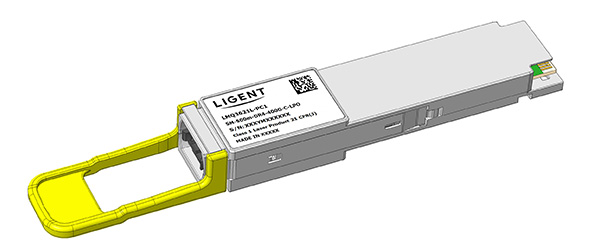

| 400G DR4 LPO | 500m | 0~70℃ | MPO12 | LMQ3621L-PC1 | ||
| QSFP-DD | 400G DR4 | 500m | 0~70℃ | MPO12 | LMQ3921S-PC1 | |

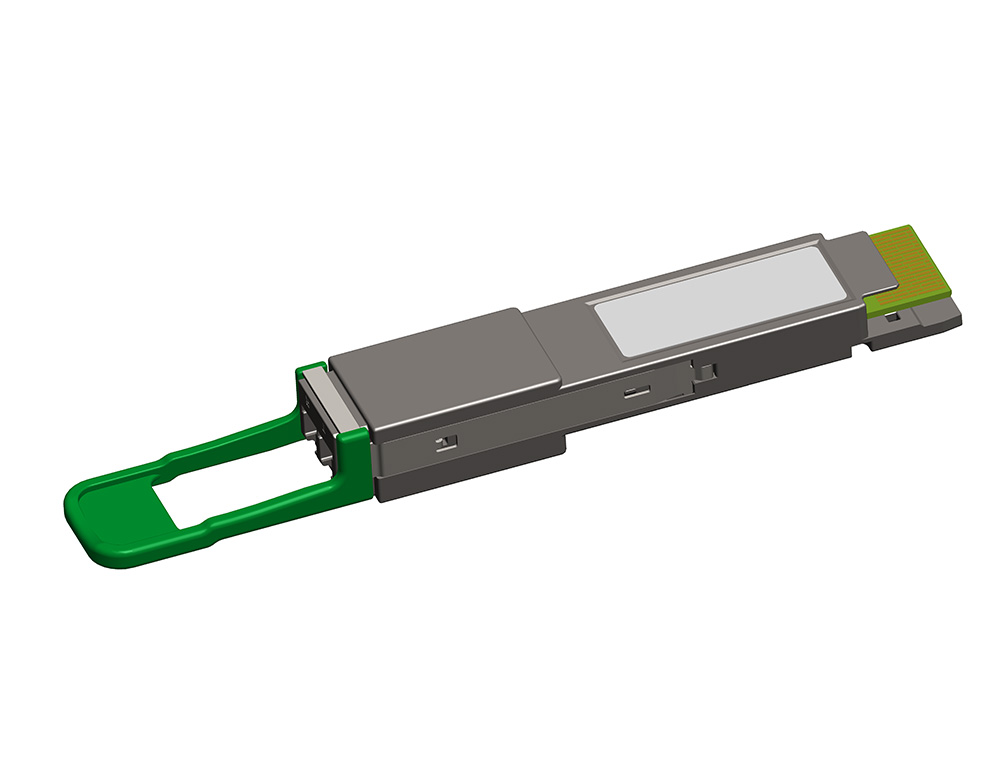

400G FR4 | 2km | 0~70℃ | Dual LC | LMQ3926-PC+ | ||
| QSFP112 to 2xQSFP112 | 400G to 2x200G AOC | 1~50m | 0~70℃ | / | DME3621S-QCxx | |
| 400G | QSFP-DD | 400G LR4-6 | 6km | 0~70℃ | LC | LMQ3928H-PC+ |

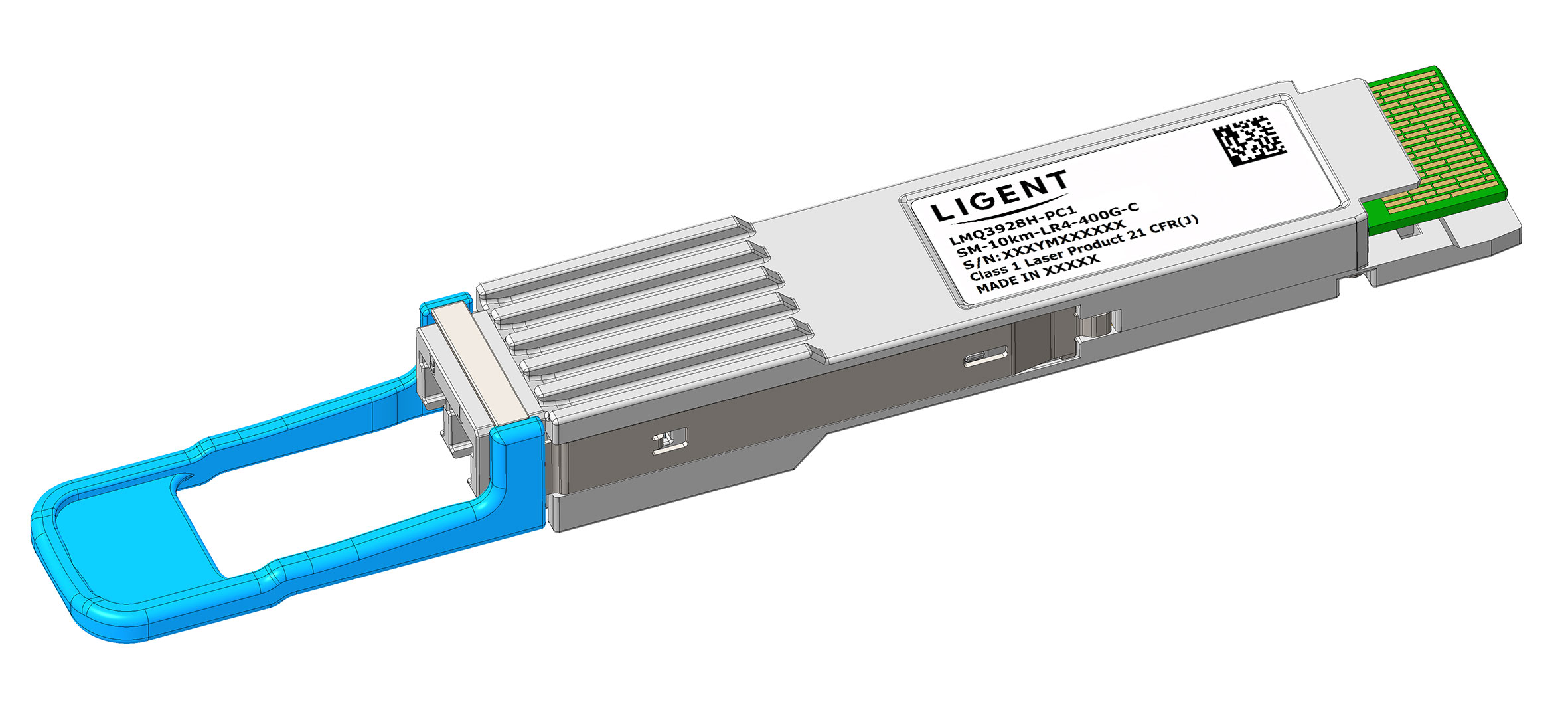

| 400G LR4-10 | 10km | 0~70℃ | LC | LMQ3928H-PC1 | ||
| 400G/OTUC4 FR4 | 2km | 0~70℃ | LC | LMQ3926H-PC+ | ||

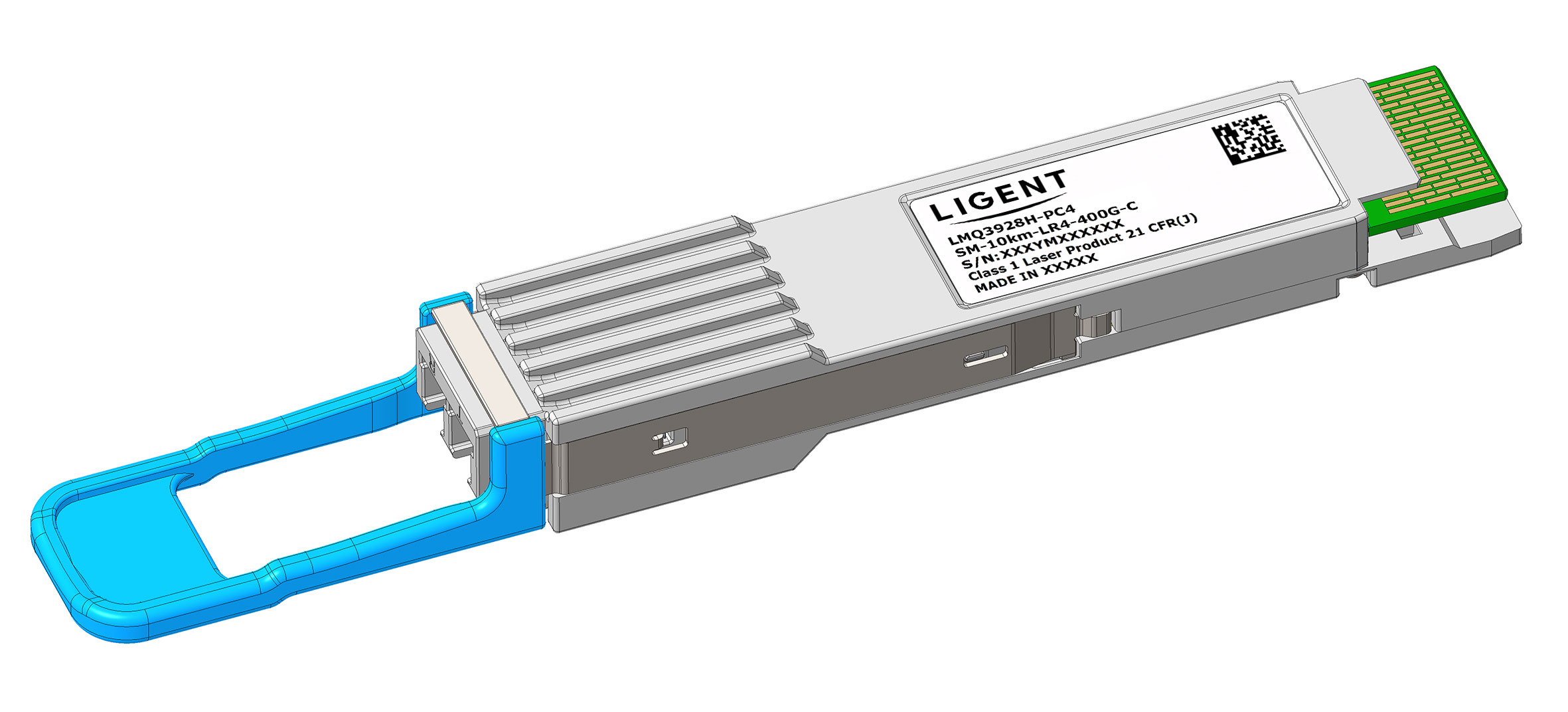

| 400G/OTUC4 LR4 | 10km | 0~70℃ | LC | LMQ3928H-PC4 | ||
| 400G ZR | 80-120km | 0~70℃ | LC | LCQ6380S-PC+ | ||
| 400G ZR+ | 480km | 0~70℃ | LC | LCQ638BS-PC+ |
